GAOLI SC200/200

This machine is widely used in construction such as industrial and civil construction, bridge construction, underground construction, large chimney construction and shipbuilding industry. It is suitable for vertical transportation of materials and personnel. As a permanent or semi-permanent elevator, it can also be used in warehouses, towers and other places.


GAOLI construction hoists are engineered for durability and safety in high-rise construction, providing efficient vertical transport of both personnel and materials across demanding job sites.


Description Other information
Description

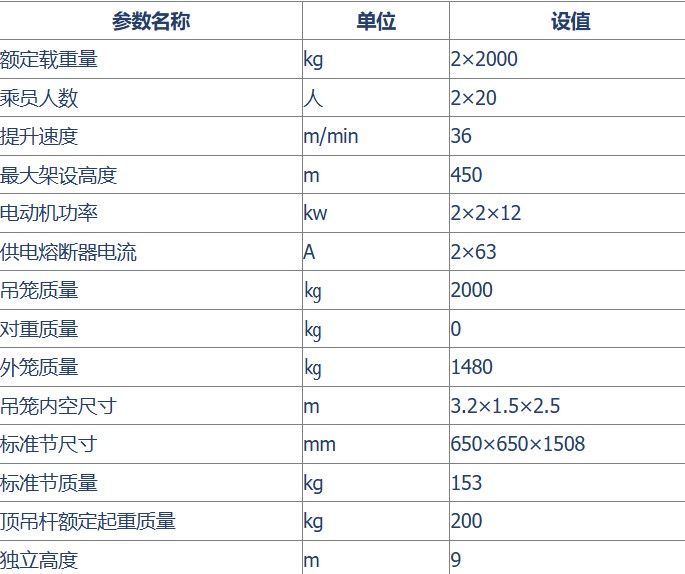

Maximum Load Capacity: 1–3.2 tons (varies by model)

Lifting Speed: 36–63 meters per minute

Maximum Lifting Height: Up to 450 meters (depends on mast configuration)

Cage Dimensions: Standard size around 3.2m x 1.5m x 2.5m, with customization options

Mast Section Dimensions: Generally 650 mm x 650 mm or 800 mm x 800 mm (rack and pinion drive)

Power Supply: 380V / 50Hz (regional variations possible)

Safety Features: Includes overload protection, emergency braking, anti-fall safety device, and auto-leveling
